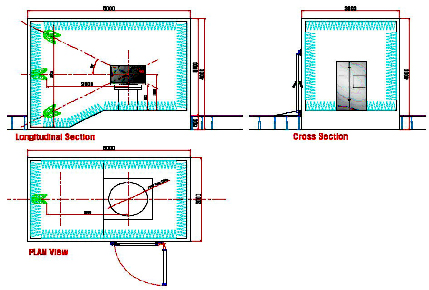

2.5D OTA Test Chamber for Large and Heavy Device ▶ Shielding Structure : Pan Type ▶ Size : 5.0x3.0x4.0m ▶ Test Frequency Range : 700MHz ~ 6GHz ▶ Microwave Absorber : 18inch ▶ Measurement Antenna : 3 x Dual Polarized Horn Antenna ▶ Test Distance : 2.5m ▶ Turntable Diameter : 1.2m ▶ Max. load Capacity : 100kg ▶ Shielding Effectiveness : 100dB ▶ Measurement Parameter · NHPRP±30⁰ · NHPPIS±30⁰
|
