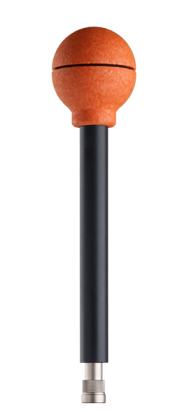

WPF18 Field Probe (E field) ▶ Frequency Range : 300kHz ~ 18GHz ▶ Sensor Type : Isotropic, RMS ▶ Measurement Range · CW : 0.5 ~ 250V/m, 0.5 ~ 1,000V/m (High power version) · RMS : 0.5 ~ 30V/m ▶ Dynamic Range : 54dB ▶ Sensitivity : 0.5V/m ▶ Resolution : 5% ▶ Frequency Response : ±2.0dB ▶ Linearity : ±0.5dB ▶ Isotropic Deviation : ±1.2dB ▶ Main Application IEC62232, EN50400, EN50401, IEC62577, EN50475, EN50476, EN50496, EN50554, EN50364, EN50357, IEC/EN62369, EN50519, IEC60601, EN50499, EN50527, EN50413 ▶ Catalog Download : WPF18.pdf ▶ Link : http://www.wavecontrol.com/rfsafety/en/products/probes
|
