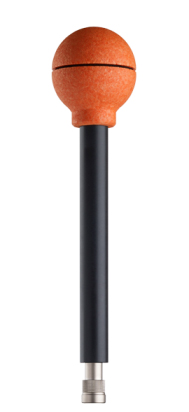

WPF40 Field Probe (E field) ▶ Frequency Range : 20MHz ~ 40GHz ▶ Sensor Type : Isotropic, RMS ▶ Measurement Range · CW : 1 ~ 1,000V/m · RMS : 1 ~ 55V/m ▶ Dynamic Range : 60dB ▶ Sensitivity : 1.0V/m ▶ Resolution : 5% ▶ Frequency Response : ±2.0dB ▶ Linearity : ±1.0dB ▶ Isotropic Deviation : ±1.0dB ▶ Main Application IEC62232, EN50400, EN50401, IEC62577, EN50475, EN50476, EN50496, EN50554, EN50499, EN50527, EN50413 ▶ Catalog Download : WPF40.pdf ▶ Link : http://www.wavecontrol.com/rfsafety/en/products/probes |
