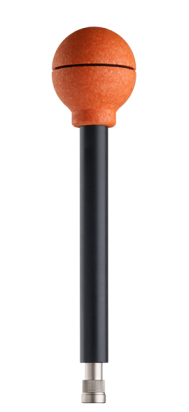

WPH1000 Field Probe (H field) ▶ Frequency Range : 30MHz ~ 1000MHz ▶ Sensor Type : Isotropic, RMS ▶ Measurement Range : 0.02 ~ 20A/m ▶ Dynamic Range : 60dB ▶ Sensitivity : 0.020A/m ▶ Frequency Response : ±1.0dB ▶ Linearity : ±1.0dB ▶ Isotropic Deviation : ±1.0dB ▶ Main Application IEC62577, EN50475, EN50476, EN50496, EN50554, EN50364, EN50357, IEC/EN62369, EN50519, IEC60601, EN50499, EN50527, EN50413 ▶ Catalog Download : WPH1000.pdf ▶ Link : http://www.wavecontrol.com/rfsafety/en/products/probes |
