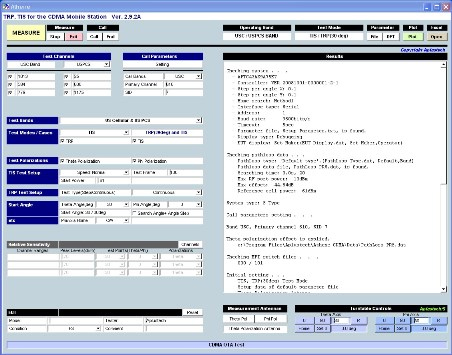

CDMA OTA Test Software

▶ No. of Test Channel : Max. 6Channel

▶ Rx Sensitivity Resolution : 0.5dB

▶ Sensitivity Limit : FER 0.5%

▶ Test Mode

   · TRP

   · TRP30(30 degree step power)

   · TIS

   · TRP30&TIS

   · Relative Sensitivity

   · 2D

   · 1D(All channel sensitivity)

▶ Test Time(3Channel – L, M, H)

   · TRP : 10min

   · TRP30 : 5min

   · TRP30&TIS : 30min

▶ Real Time TRP, TIS Data Update

▶ System Repeatability(Tolerance)

   · TRP : ±0.3dB

   · TIS : ±0.5dB

▶ Instrument Support

   · Keysight E5515C

   · Anritsu MT8820C

   · R&S CMW500
