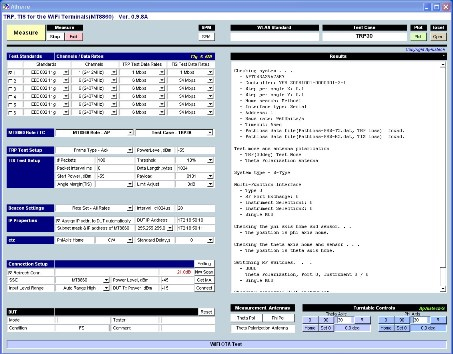

Wi-Fi Radiated RF Performance Test Software

▶ No. of Test Channel : Max. 6Channel

▶ Supported Band

   · Anritsu MT8860C : IEEE802.11 a/b/g

   · R&S CMW500 : IEEE802.11a/b/g/n

▶ Rx Sensitivity Resolution : 0.5dB

▶ Sensitivity Limit : PER 10 or 90%

▶ Test Mode

   · TRP30(30 degree step power)

   · TIS

   · TRP30&TIS

   · 2D

▶ Test Time(1Channel)

   · TRP30 : 7min

   · TRP30&TIS : 30min

▶ Real Time TRP, TIS Data Update

▶ System Repeatability(Tolerance)

   · TRP : ±0.3dB

   · TIS : ±0.5dB

▶ Instrument Support(DRE Required)

   · Anristsu MT8860C

   · R&S CMW500
